Feetech FS90R FT90R（digital） 360 Degree Continuous Rotation Servo Servo Tester for Arduino Smart Ca

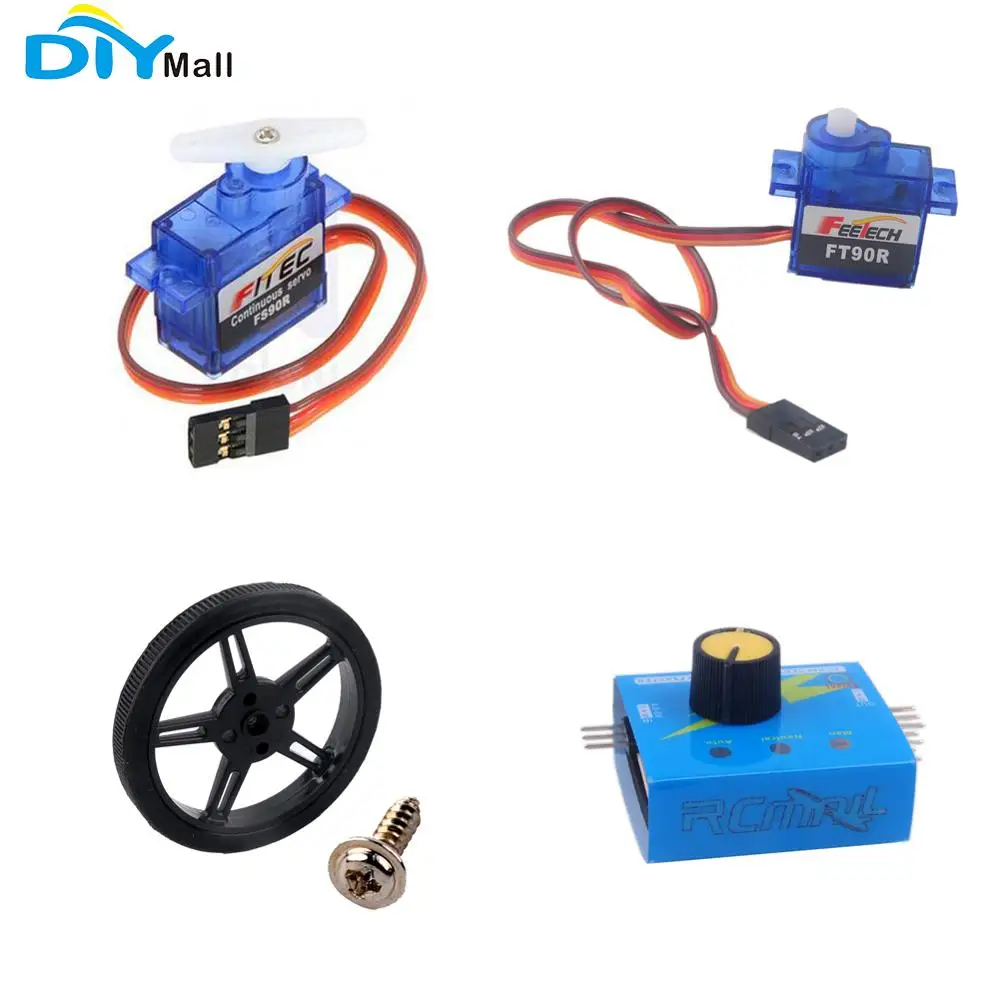

[33059750012] Feetech FS90R FT90R（digital） 360 Degree Continuous Rotation Servo Servo Tester for Arduino Smart Car Robot RC Drone DIYmallDescription of FS90R Servo：Feetech FS90R 360 Degree Continuous Rotation Micro RC Servo 6V 1.5KGDimensions:23.2 × 12.5 × 22 mmWeight:9 gOperating Speed :110RPM (4.8V)130RPM (6V)Stall Torque :1.3kg.cm/18.09oz.in(4.8V)1.5kg.cm/20.86oz.in(6V)Operating Voltage: 4.8V~6VControl System: AnalogDirection: CCWOperating Angle: 360degreeRequired Pulse: 900us-2100usBearing Type: NoneGear Type: PlasticMotor Type: MetalConnector Wire Length: 20 cm Certification: CE, ROHSPackage Inlcuding:1 X Feetech FS90R ServoDescription of FT90R Servo：Feetech FT90R Digital 360 Degree Continuous Rotation Micro RC Servo 6V 1.5KG PWMDescription:Size: 22.9mm X 12.1mm X 26.5mmWeight: 9gGear type：Plastic GearLimit angle: 360°Bearing: NO Ball bearingsHorn gear spline: 20THorn type: Plastic,POMCase: ABSConnector wire: 250mm ±5 mm JRMotor: Metal brush motorSplash water resistance: noStorage Temperature Range: -30°C~80°COperating Temperature Range: -10°C~70°CCommand signal:Pulse width modificationAmplifier type:Pulse width modificationPulse width range: 900~2100μsecNeutral position: 1500 μsecRunning degree: 360°Dead band width: ±20μsecRotating direction:CW(1500~1000 μsec),CCW(1500~2000 μsec)Package Includes:1 X FT90R servo1 X Servo accessories Description of Wheel：This black plastic wheel is press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60 mm (2.36″) in diameter. Two additional mounting holes for 3-40 screws make it possible to use the wheel with several of mounting hubs. Package Includes:1 X Wheel for Feetech FS90R Servo 1 X ScrewDescription of Servo Tester：3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler CheckerDescription:Output: ≤15mA (5.0)Input: DC 4.2-6.0vOutput signal: 1.5ms ± 0.5msSize: 46 * 32 * 17MMWeight: 8gAdjustment modes: manual, automatic, and the median.Features: can be easily detected and set the dummy bit server, jitter and median.Can be connected to two servos or ESC; MCU control, good stability, high accuracy. Turn the knob, steering can be detected.If you connect the electronic governor (brush or brushless available), you can get rid of the remote control device for manual control, for testing toneSpeed ??or motor performance is very practical, no longer cumbersome connecting the remote control and the receiver. It is equivalent to a "handDynamic Receiver "feature, playing rudder knob analog transmittersNote: This tester can test more than 55 grams of servosPackage Included:1 X Servo Tester
US $1.66Time Limited offer 16% US $1.39
